Topic: Sound Driver not working in Stand Alone Drivers

I made a Stand Alone Drivers CD according this post. All drivers work fine. But sound driver is not working. When I add the drivers in XPCD it works without no problems. What's the problem? I added all the drivers packs in including Sound A, Sound B.

Last edited by Kamrul08 (2012-11-14 03:51:51)

Re: Sound Driver not working in Stand Alone Drivers

Hello & Welcome to the DriverPacks Forum.  Namaste!  (Sat Sri Akal!).

When you say that the sound is not working, does this mean that no driver exists is DP_sound_A or B, or is the wrong driver installed resulting in a Yellow Bang! in Device Manager (under Sound, Video & Game Controllers)?

Please post your HWid's & DP logs.  If you can visibly see the audio chip, please post the markings upon it?

Last edited by TechDud (2012-11-14 11:11:42)

Re: Sound Driver not working in Stand Alone Drivers

TechDud wrote:

Hello & Welcome to the DriverPacks Forum.  Namaste!  (Sat Sri Akal!).

When you say that the sound is not working, does this mean that no driver exists is DP_sound_A or B, or is the wrong driver installed resulting in a Yellow Bang! in Device Manager (under Sound, Video & Game Controllers)?

Please post your HWid's & DP logs.  If you can visibly see the audio chip, please post the markings upon it?

Thanks TechDud for quick reply. My DP_sound_A or B packs are full with driver. After running my Stand Alone Drivers CD Device Manager shows some sound drivers installed. Device Manager also shows a Unknown driver with red color and it cause no sound in my PC. I used this Stand Alone Drivers CD in 3 PC. 1 is OK and other 2 show sound problem. But in same PC my XPCD with drivers (created by DPs_BASE) works fine. I used this XPCD in Dell, Asus, HP, Acer Laptop also.

How can I get HWid's & DP logs? Thanks again.

Re: Sound Driver not working in Stand Alone Drivers

The HWid's are most important at this point.  System Model# and Manufacturer of the unit(s) with those issues is helpful to find a recommended driver to compare with.

If you get a chance to make note of chip markings (such as: during maintenance-cleaning &/or repair); i often recommend taking the extra 2 minutes, should opportunity permit.

That utility is linked in either of mr_smartepants', OverFlow's, or my signature, at the bottom of the post.

I won't be able to respond for about 20 hours from now, so perhaps someone else "in-the-know" will be able to assist; just-in-case ([off-topic]i miss that old tractor[/off-topic]).

Last edited by TechDud (2012-11-21 13:23:01)

Re: Sound Driver not working in Stand Alone Drivers

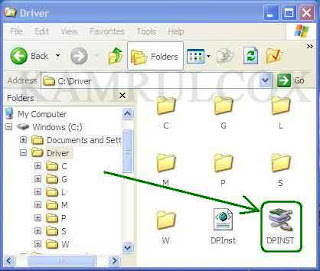

Thanks TechDud. I have added some screenshots and HWIDs for your kind advices.
PunBB bbcode test

PunBB bbcode test

PunBB bbcode test

PunBB bbcode test


HWIDs:
===========
PCI Devices
===========
PCI\VEN_8086&DEV_1094&SUBSYS_D6058086&REV_01\4&1E46F438&0&40F0: Intel(R) PRO/100 VE Network Connection
PCI\VEN_8086&DEV_244E&SUBSYS_00000000&REV_E1\3&61AAA01&0&F0 : Intel(R) 82801 PCI Bridge - 244E
PCI\VEN_8086&DEV_2770&SUBSYS_00000000&REV_02\3&61AAA01&0&00 : Intel(R) 945G/GZ/GC/P/PL Processor to I/O Controller - 2770
PCI\VEN_8086&DEV_2772&SUBSYS_D6068086&REV_02\3&61AAA01&0&10 : Intel(R) 82945G Express Chipset Family
PCI\VEN_8086&DEV_27B8&SUBSYS_00000000&REV_01\3&61AAA01&0&F8 : Intel(R) ICH7 Family LPC Interface Controller - 27B8
PCI\VEN_8086&DEV_27C0&SUBSYS_D6068086&REV_01\3&61AAA01&0&FA : Intel(R) N10/ICH7 Family Serial ATA Storage Controller - 27C0
PCI\VEN_8086&DEV_27C8&SUBSYS_D6068086&REV_01\3&61AAA01&0&E8 : Intel(R) N10/ICH7 Family USB Universal Host Controller - 27C8
PCI\VEN_8086&DEV_27C9&SUBSYS_D6068086&REV_01\3&61AAA01&0&E9 : Intel(R) N10/ICH7 Family USB Universal Host Controller - 27C9
PCI\VEN_8086&DEV_27CA&SUBSYS_D6068086&REV_01\3&61AAA01&0&EA : Intel(R) N10/ICH7 Family USB Universal Host Controller - 27CA
PCI\VEN_8086&DEV_27CB&SUBSYS_D6068086&REV_01\3&61AAA01&0&EB : Intel(R) N10/ICH7 Family USB Universal Host Controller - 27CB
PCI\VEN_8086&DEV_27CC&SUBSYS_D6068086&REV_01\3&61AAA01&0&EF : Intel(R) N10/ICH7 Family USB2 Enhanced Host Controller - 27CC
PCI\VEN_8086&DEV_27D0&SUBSYS_00000000&REV_01\3&61AAA01&0&E0 : Intel(R) N10/ICH7 Family PCI Express Root Port - 27D0
PCI\VEN_8086&DEV_27D2&SUBSYS_00000000&REV_01\3&61AAA01&0&E1 : Intel(R) N10/ICH7 Family PCI Express Root Port - 27D2
PCI\VEN_8086&DEV_27D4&SUBSYS_00000000&REV_01\3&61AAA01&0&E2 : Intel(R) N10/ICH7 Family PCI Express Root Port - 27D4
PCI\VEN_8086&DEV_27D6&SUBSYS_00000000&REV_01\3&61AAA01&0&E3 : Intel(R) N10/ICH7 Family PCI Express Root Port - 27D6
PCI\VEN_8086&DEV_27D8&SUBSYS_D6068086&REV_01\3&61AAA01&0&D8
PCI\VEN_8086&DEV_27DA&SUBSYS_D6068086&REV_01\3&61AAA01&0&FB : Intel(R) N10/ICH7 Family SMBus Controller - 27DA
PCI\VEN_8086&DEV_27DF&SUBSYS_D6068086&REV_01\3&61AAA01&0&F9 : Intel(R) ICH7 Family Ultra ATA Storage Controllers - 27DF
18 matching device(s) found.

===========
USB Devices
===========
USB\ROOT_HUB\4&3AD9D2ED&0                                   : USB Root Hub
USB\ROOT_HUB\4&3E4D35A&0                                    : USB Root Hub
USB\ROOT_HUB\4&CBA647&0                                     : USB Root Hub
USB\ROOT_HUB\4&DA5555D&0                                    : USB Root Hub
USB\ROOT_HUB20\4&5C5EE11&0                                  : USB Root Hub
USB\VID_0E8F&PID_0022\5&130FAD55&0&2                        : USB Composite Device
USB\VID_0E8F&PID_0022&MI_00\6&1A838FDA&0&0000               : USB Human Interface Device
USB\VID_0E8F&PID_0022&MI_01\6&1A838FDA&0&0001               : USB Human Interface Device
USB\VID_1005&PID_B113\07022738370C6409                      : USB Mass Storage Device
USBSTOR\DISK&VEN_&PROD_USB_FLASH_DRIVE&REV_PMAP\07022738370C6409&0: USB FLASH DRIVE USB Device
10 matching device(s) found.

=============
Input Devices
=============
HID\VID_0E8F&PID_0022&MI_00\7&355C6F09&0&0000               : HID Keyboard Device
HID\VID_0E8F&PID_0022&MI_01&COL01\7&2F96BF27&0&0000         : HID-compliant consumer control device
HID\VID_0E8F&PID_0022&MI_01&COL02\7&2F96BF27&0&0001         : HID-compliant device
HID\VID_0E8F&PID_0022&MI_01&COL03\7&2F96BF27&0&0002         : HID-compliant consumer control device
4 matching device(s) found.

============
ACPI Devices
============
ACPI\FIXEDBUTTON\2&DABA3FF&0                                : ACPI Fixed Feature Button
ACPI\GENUINEINTEL_-_X86_FAMILY_15_MODEL_4\_0                : Intel(R) Pentium(R) 4 CPU 2.66GHz
ACPI\PNP0000\4&2B9557D4&0                                   : Programmable interrupt controller
ACPI\PNP0003\3&61AAA01&0                                    : Advanced programmable interrupt controller
ACPI\PNP0100\4&2B9557D4&0                                   : System timer
ACPI\PNP0103\3&61AAA01&0                                    : High Precision Event Timer
ACPI\PNP0200\4&2B9557D4&0                                   : Direct memory access controller
ACPI\PNP0400\4&2B9557D4&0                                   : Printer Port (LPT1)
ACPI\PNP0501\1                                              : Communications Port (COM1)
ACPI\PNP0800\4&2B9557D4&0                                   : System speaker
ACPI\PNP0A03\2&DABA3FF&0                                    : PCI bus
ACPI\PNP0B00\4&2B9557D4&0                                   : System CMOS/real time clock
ACPI\PNP0C02\1                                              : Motherboard resources
ACPI\PNP0C02\3                                              : Motherboard resources
ACPI\PNP0C04\4&2B9557D4&0                                   : Numeric data processor
ACPI\PNP0C0E\2&DABA3FF&0                                    : ACPI Sleep Button
ACPI\PNP0F03\4&2B9557D4&0                                   : Microsoft PS/2 Mouse
ACPI_HAL\PNP0C08\0                                          : Microsoft ACPI-Compliant System
ROOT\ACPI_HAL\0000                                          : ACPI Uniprocessor PC
19 matching device(s) found.

============
HDA Audio
============
No matching devices found.

============
RAID Devices
============
PCI\VEN_8086&DEV_27C0&SUBSYS_D6068086&REV_01\3&61AAA01&0&FA
    Name: Intel(R) N10/ICH7 Family Serial ATA Storage Controller - 27C0
    Hardware ID's:
        PCI\VEN_8086&DEV_27C0&SUBSYS_D6068086&REV_01
        PCI\VEN_8086&DEV_27C0&SUBSYS_D6068086
        PCI\VEN_8086&DEV_27C0&CC_01018F
        PCI\VEN_8086&DEV_27C0&CC_0101
    Compatible ID's:
        PCI\VEN_8086&DEV_27C0&REV_01
        PCI\VEN_8086&DEV_27C0
        PCI\VEN_8086&CC_01018F
        PCI\VEN_8086&CC_0101
        PCI\VEN_8086
        PCI\CC_01018F
        PCI\CC_0101
PCI\VEN_8086&DEV_27DF&SUBSYS_D6068086&REV_01\3&61AAA01&0&F9
    Name: Intel(R) ICH7 Family Ultra ATA Storage Controllers - 27DF
    Hardware ID's:
        PCI\VEN_8086&DEV_27DF&SUBSYS_D6068086&REV_01
        PCI\VEN_8086&DEV_27DF&SUBSYS_D6068086
        PCI\VEN_8086&DEV_27DF&CC_01018A
        PCI\VEN_8086&DEV_27DF&CC_0101
    Compatible ID's:
        PCI\VEN_8086&DEV_27DF&REV_01
        PCI\VEN_8086&DEV_27DF
        PCI\VEN_8086&CC_01018A
        PCI\VEN_8086&CC_0101
        PCI\VEN_8086
        PCI\CC_01018A
        PCI\CC_0101
2 matching device(s) found.

Re: Sound Driver not working in Stand Alone Drivers

"What's the problem?"

…I wonder if the following quote from that post is relevant?

OverFlow wrote:

"*** Edit ***
New SAD2 utility with NT5/NT6 (Vista/Win7) compatibility is here:"

http://forum.driverpacks.net/viewtopic.php?id=5336

"====================================================
ALL INFO BELOW HERE IS FOR REFERENCE AND IS OUT OF DATE as of Sept 2008 DriverPacks BASE 8.09
===================================================="

I hope that it is a simple fix, like this for you.  smile

Last edited by TechDud (2012-11-16 13:55:26)

Re: Sound Driver not working in Stand Alone Drivers

Sorry to disturb you TechDud. I can't understand what is the deference between my AIO Driver CD and my Customize XP CD. I added same drivers in XP CD (following this post). This CD works very fine. My AIO Driver CD also works fine but Sound Driver. My AIO Driver CD Screen shot below. I just run DPINST and it finish all the works. (My OS is XP professional SP2)
PunBB bbcode test


Now please tell me how to use SAD2 utility in my AIO Driver CD you describe above. I read your link but couldn't understand how to use it. Hope your kind advices.

Re: Sound Driver not working in Stand Alone Drivers

Kamrul08 wrote:

(My OS is XP professional SP2)

You must update to SP3.
SP3 contains a hotfix that allows ALL HDaudio devices to be detected correctly.  They will fail otherwise.

Read BEFORE you post.  HWID tool   DriverPacks Tutorial   DONATE!
http://driverpacks.net/userbar/admin-1.png
Not all heroes wear capes, some wear Kevlar!

Re: Sound Driver not working in Stand Alone Drivers

mr_smartepants wrote:

You must update to SP3.
SP3 contains a hotfix that allows ALL HDaudio devices to be detected correctly.  They will fail otherwise.

At last I guessed it. Because I faced same problem before in XP SP2. Then Microsoft gave a hotfix and it helped me. I'll try this.

Could you tell me please how to use SAD2 utility in AIO Driver CD.

Thanks  TechDud and mr_smartepants.

Re: Sound Driver not working in Stand Alone Drivers

The instructions are in the first post of the SAD2 thread and in the "readme.txt" included in the download.
The hotfix is KB888111 but there's no reason not to use SP3.

Read BEFORE you post.  HWID tool   DriverPacks Tutorial   DONATE!
http://driverpacks.net/userbar/admin-1.png
Not all heroes wear capes, some wear Kevlar!

Re: Sound Driver not working in Stand Alone Drivers

mr_smartepants wrote:

The instructions are in the first post of the SAD2 thread and in the "readme.txt" included in the download.
The hotfix is KB888111 but there's no reason not to use SP3.


Thanks mr_smartepants. KB888111 fixed my problem. I used this hot fixed about 1 year ago for same problem. Microsoft advised me to used this.

Thanks again for helpful advices.
